Guangdong Keda Metrology Technology Co., Ltd
Tel: +86-769-21663198 Fax: +86-769-22270198
| Place of Origin | Guangdong, China (Mainland) |
|---|---|
| Brand Name | KLD |
| Model Number | SCS-150 |
| Type | Truck Scale |
| Power Supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |
| Display Type | LCD |
| Rated Load | 150Tons |
| Accuracy | 20Kg |
| Material | 8~20mm steel Q235 |

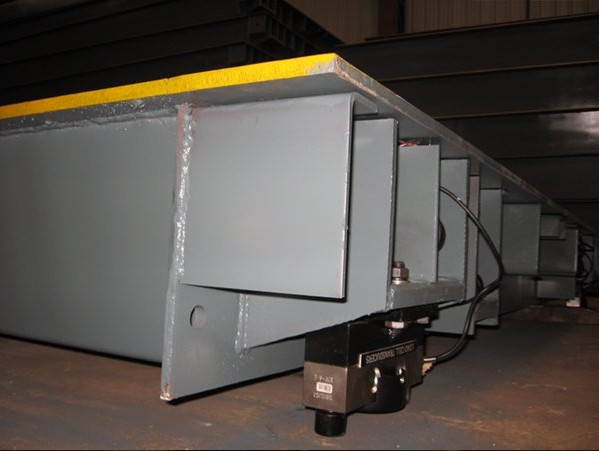

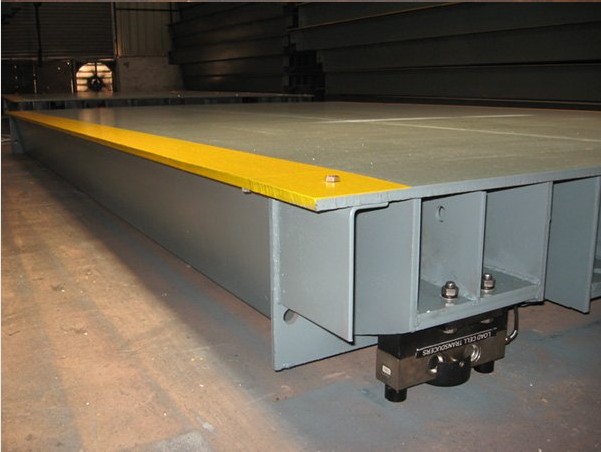

| Structure | U-shaped beam |
| Size | 3*21m |
| Paint | rust&acid protection |

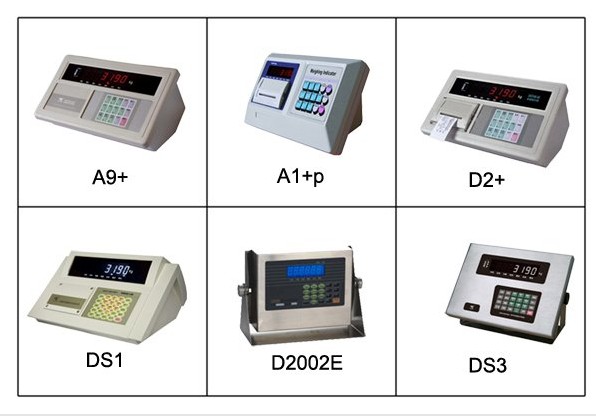

| Indicator | 1set (A1+p) |
| Terminal box | 1set (anti-water) |
| Cable | 30m |
| Foundation type | shallow, deep pit or pitless |
| Accuracy | OIML III |
| Price: | FOB USD 3000~12000 / Set Get Latest Price |
|---|---|
| Minimum Order Quantity: | 1 Set/Sets attainable |
| Port: | Shenzhen or Guangzhou |

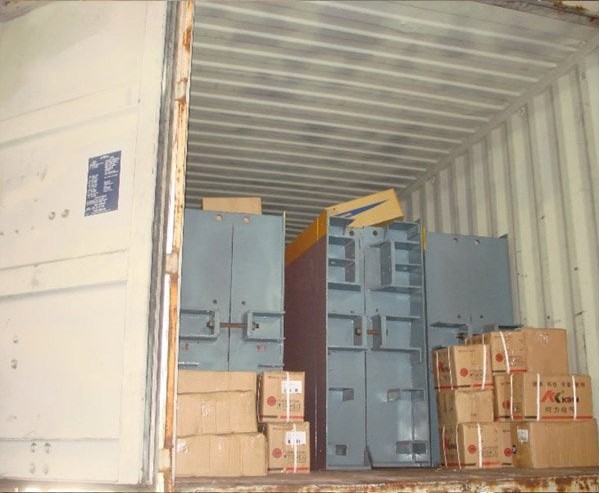

| Packaging Details: | modules of scale platform are fastened together by bolts; load cell , indicator and other accessories are packed in cartons |
| Delivery Time: | Within 15 days |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 Set/Sets per Month attainable |
KLD 150 Tons Electronic Weighbridge
Features
- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Zero range setup (auto/manual)
- Fast filled weighing bill print setup
- Save 255 vehicle ID/net weight, 100 cargo ID, and 205 weighing records
- Weighing data save protection in case of power off
- Battery indication and low battery protection
| SCS-150 Specifications | |
| Max Capability (T) | 150 |
| Graduation (Kg) | 20 |
| Platform size (m) | 3.0×15 (16, 18, 20) |
| 3.2×16 (18, 20) | |
| 3.4×16 (18, 21) | |
Remarks

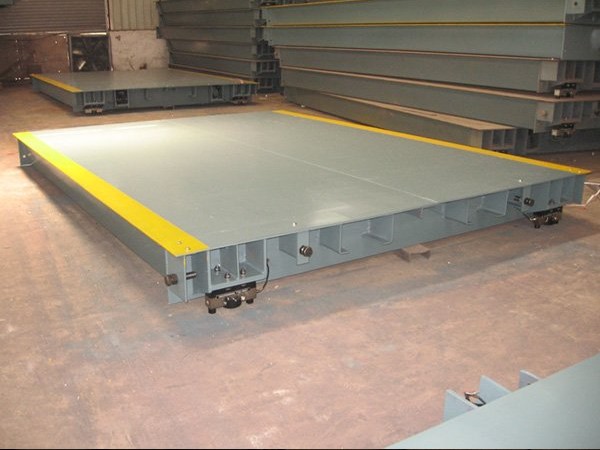

In order to make sure its intensity or rigidity, scale of which length and width respectively over 10 meters and 3 meters are often made up with several equal modules. The sizes (Width*Length) for the modules are: 1.5*5m(6m, 7m), 1.6*5m(6m, 7m), 1.7*5m(6m, 7m). Such designs are due to consideration of standard sizes of export containers. However, it will not reduce rigidity of scale platform instead of its rigidity for separate modules need more U-shaped beams compared with a whole platform.
