China Made 10 ~ 200 Tons Digital Weighbridge

China Made 10 ~ 200 Tons Digital Weighbridge
A. Capacity:150 tons; Full length
B. Factory sale
C. OIML certificate

Payment & Shipping Terms:

Price:	FOB USD 1~18000 / Set Get Latest Price
Minimum Order Quantity:	1 Set/Sets Weighbridge
Port:	Guangzhou or Shenzhen
Packaging Details:	in a 20' or 40' containers, modules of weighbridge platform are fastened by bolts; load cell, indicator and other accessories are packed in cartons.
Delivery Time:	1~2 weeks
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	90 Set/Sets per Month Weighbridge

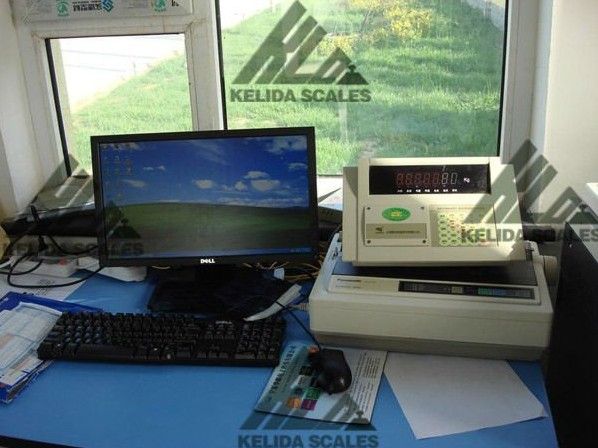

Indicator description



1. Communication interface: RS485, R232 (4 core cable or 2 core cable)
2. Signal transmission distance: ≤1000 meters
3. Transmission baud rate: ≤19200 bps
4. Memory: 1500 groups of truck number tare, 201 groups of cargo NO. and Cargo name in English or Chinese; 100 groups of customer No. and customer name in English or Chinese; 100 groups of number or remarks; 2400 groups of weighing records
5. Indication display: 7 digital LED, 7 status indications
6. Keyboard: Data key: 0~9; function key: 25 pieces (10 of them are same as data key)
7. Time: auto leap year, leap month, can display year/month/date/hour/minute/second
8. Display interface of scoreboard RS232, 0~20mA current loop
9. Serial communication interface: fixed with RA232/RS485
10. Printing interface: fixed with standard parallel printing interface, such as Epson LQ-300K+II, Epson LQ-1600K(+), KX-P1131+, DS-300, and etc
11. Signal power: DC 12V, not less than 600mA
12. Power supply: AC 110~220V, 15V±10%, 45W

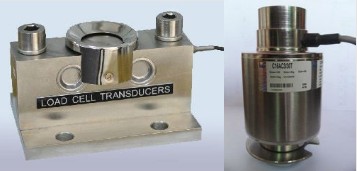

load cell description

Rated Load: 10t,20t,30t,40t,50t
Rated Output: 2.0000±0.001MV/V
Total Error: ±0.02%F.S
Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC)
Max. Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S
Input Impedance:775±5Ω
Output Impedance: 700±2Ω
Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S
Ultimate Overload: 200%F.S
Operating Temperature Range: -30~+70°C
Compensated Temperature Range: -20~+60°C
Temperature Effect On Load: ±0.02%F.S/10
Temperature Effect On Zero: ±0.02%F.S/10
Construction: Alloy Steel
Protection Class: IP68

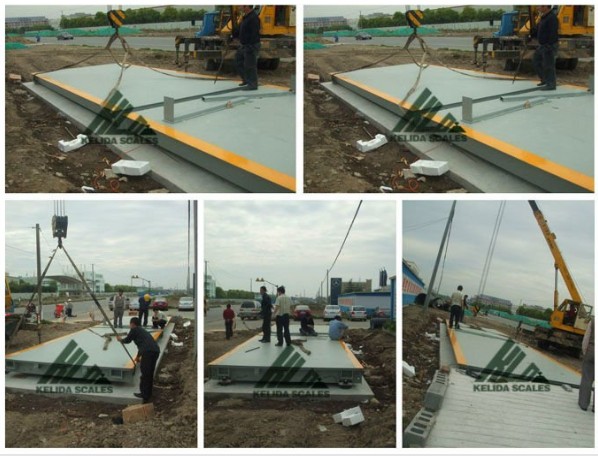

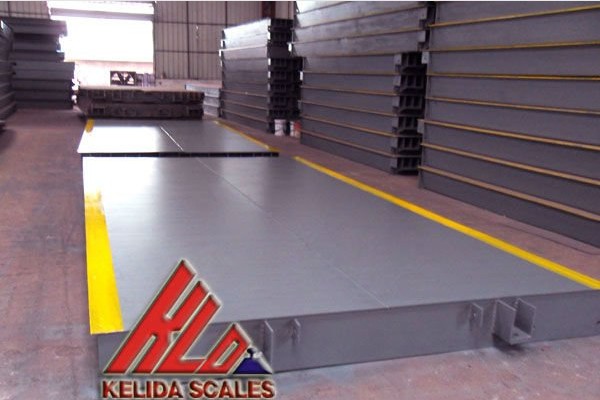

Weighbridge platform description

 The weighbridge platforms are a heavy duty welded steel structure, the canister compression load cells are durable and stable, and all electronics are sealed securely to endure all weather conditions. This robust design ensures a long working life of the weighbridge, and the high reliability of the load cells guarantees you a low cost of ownership
