Chinese Digital Weighbridge

Chinese Digital Weighbridge
1 Made with channel beam
2 OIML approval indicator
3 CE & ISO9001:2008 certificate

Payment & Shipping Terms:

Price:	FOB USD 5000~18000 / Set Get Latest Price
Minimum Order Quantity:	1 Set/Sets Weighbridge
Port:	Shenzhen or Guangzhou

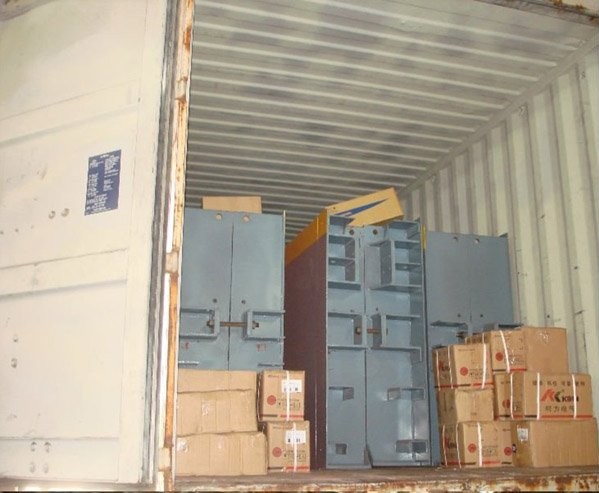

Packaging Details:	modules of weighbridge platforms are fastened by bolts; load cell, indicator and other accessories are placed in cartons
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram
Supply Ability:	100 Set/Sets per Month .

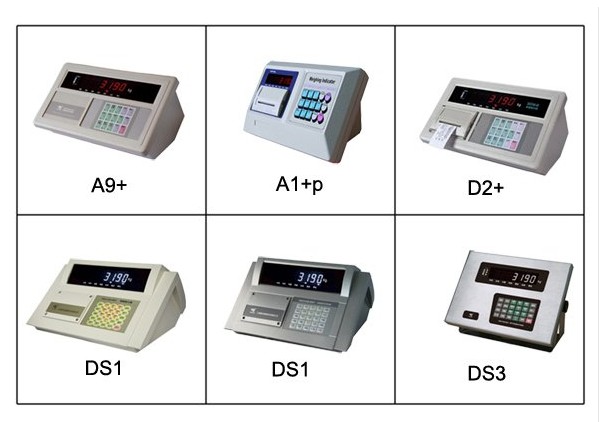

Introduction of indicator

• Use inner code to replace weight observing and analysis tolerance
• Zero range setup (auto/manual), KG/LB switch
• Non-linearity and calibration tolerance correction
• Password management and timing power off function
• Auto/manual, condition/non-condition, daily/sorted report print setup
• Fast filled weighing bill print setup
• Save 1500 vehicles ID/net weight, 201 cargo ID/cargo name, 100 customer ID/customer name, 100 notes and 1501 weighing records
• Weighing data save protection in case of power off
• Input character with keyboard or download from PC
• Modify communication address of digital load cell
• Data check for single load cell and single angle
• Humidity: ≤95%
• Working temperature: -10~+40 Centigrade

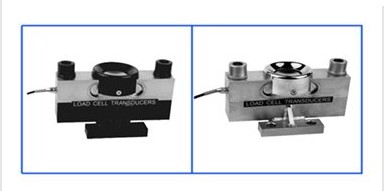

Introduction of bridge-typed load cell

• Alloy steel, nickel plated, hermetically welded, oil proof, waterproof and anti-corrosion
• Dual shear beam, easy installation
• High accuracy and reliable performance
• Suitable for electronic truck/ railway scales and other electronic weighing devices

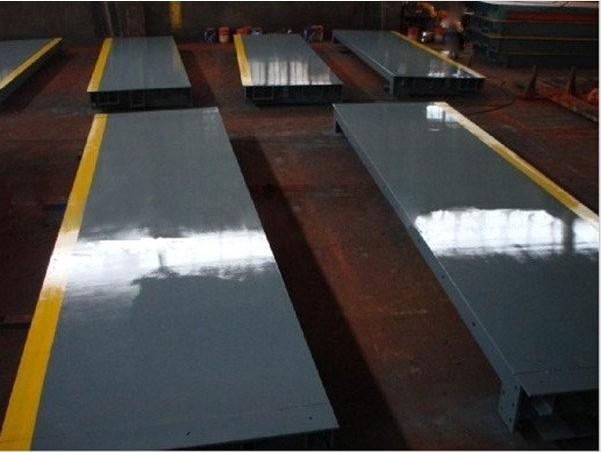

 Introduction of weighing platform

  The structure is enclosed construction with 6 U-shaped beams. Compared with normal structure with I-shaped beams, this enclosed design has two advantages--one is to keep off corrosion from inside out protect platform; the other one is more rigid since 6 U-shape beams has 12 support lines than 6 I-shaped beams' and besides stress from truck etc can be divided equally. And surface of platform is covered with epoxy zinc rich primer and acrylic marine paint--the former, is for the first surface layer, whose main function is corrosion protection and to reducing chalking; while, the second layer is acrylic marine paint which is anti-acid, anti-alkali and anti-scratch.

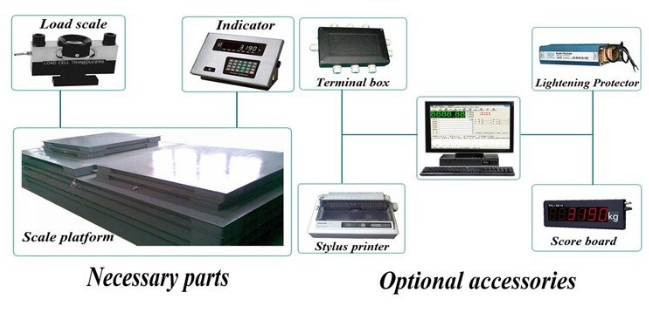

Standard parts

 Load cell: 8 or 10 s

  Indicator: 1 set

  Cable:       30m

 Selective parts

 Computer: 1 set

  Printer:      1 set

  Ramp:       1 or 2 sets

  Scoreboard: 1 set

  Guardrail:  2 sets
