| Place of Origin | Guangdong, China (Mainland) |
|---|---|
| Brand Name | KLD |
| Model Number | SCS-100 |
| Type | Truck Scale |
| Power Supply | 110V+-10%; 220V +-10% AC, 50 or 60Hz |
| Display Type | LED |
| Rated Load | 100 Tons |
| Accuracy | 20Kg |
| Material | 8~20mm steel plate |
| Rib | U-shaped girders |
| Structure | Complete steel enclosed construction |
| Protective cover | anti-acid anti-corrossive |
| Load cell | OIML III accuracy |
| Indicator | DS1, D2002E, A9+ |
| Terminal box | stainless and water-proof |
| Cable | 5-core shielded type |
| Safety overload | 150% |
| Suppiler | Chinese manufactory |
| Price: | FOB USD 2000~15000 / Set Get Latest Price |
|---|---|
| Minimum Order Quantity: | 1 Set/Sets Weigh Bridge |
| Port: | Guangzhou or Shenzhen |

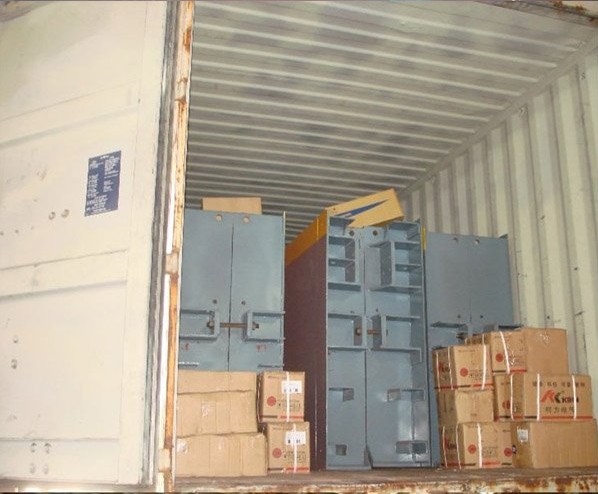

| Packaging Details: | modules of Weigh Bridge platform are fastened by bolts; load cell, indicator and other accessories are packed in cartons. |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Set/Sets per Week . |
Digital Chinese Lorry Weigh Bridge
Introduction

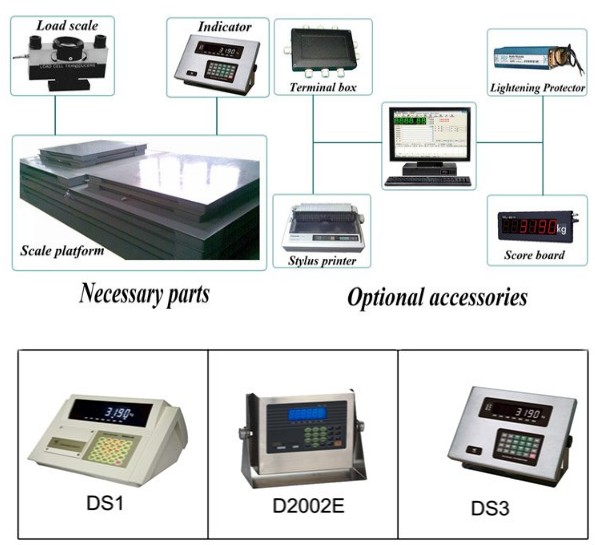

Weighing scale consists of three essential parts: weighing platform, load cell and indicator. Besides computer, printer and unattended system are also selective to be equipped which can realize distant transmission and effective management of weighing date. It is widely used in mining, metallurgy, construction, machine, chemical, iron and steel industries etc.
Main technical parameters for indicator
| Main technical parameters for Indicator | |
| Conversion Mode | Double integral A/D |
| Signal input range | -60mv~+60mv |
| Conversion mode | Over 50Hz |
| Non-linearity | <0.01%F.S |
| Power supply | DC, 15V, 350mA |
| Display | 6-bit fluorescent display, 0.8 inches in digit height |
| Display range | 00000~99995 |
| Number of digital key | 0~9 keys |
| Function key | 20 keys |
| Transmission distance | ≤2000m |
| Operating temperature | 0~44°C |
| Relative moisture | ≤90%RH |
| Warm-up time | 15min |
| Fuse | 20mA |
Main technical parameters for bridge-typed load cell
| Main technical parameters for column-typed load cell | |
| Rated load | 10/15/20/30/40/60/100t |
| Sensitivity | (2.0±0.1%) mV/V |
| Combined error | ±0.03% F.S |
| Creep Error30min | ±0.02% F.S |
| Zero balance | ±1% F.S |
| TCO: | ±0.017% F.S/10oC |
| TC Span: | ±0.017% F.S/10oC |
| Input resistance: | 750±5Ω |
| Output resistance: | 702±2Ω |
| Insulation resistance: | ≥5000MΩ |
| Operating Temp. Range | -30~+70oC |
| Maximum safe over load: | 150%F.S |
| Ultimate over load: | 250%F.S |
| Recommend excitation: | 10~12V DC |
| Maximum excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element material: | A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=12m(7.5~22.5t), 18m(30~300t) |
| Citation | GB/T7551-1997/ OIML R60 |
| Mode of Connection | Red(Input+),Black(Input-), Green(Output+),White(Output-) |
SCS-100 specifications | ||
| Max Capability (T) | 100 | |
| Graduation (Kg) | 20 | |
| Platform size (m) | 3.0×15 (16, 18, 20) | |
| 3.2×16 (18, 20) | ||
| 3.4×16 (18, 21) | ||
We are weigh bridge manufacturer. We can supply weighbridge in full sizes and capabilities.
