Product Details
Packaging & Delivery

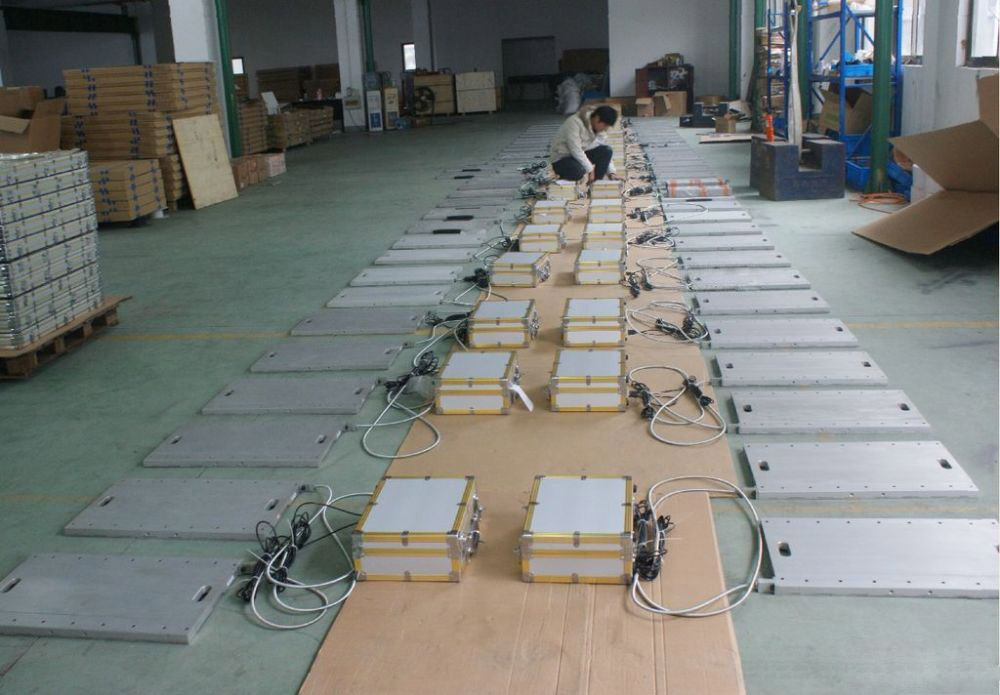

Electronic weighbridge packing:
in 20' or 40' container, modules of weighbridge platform are fastened by bolts; indicator, load cell and other accessories are packed in cartons.
Delivery Detail: within 15 days

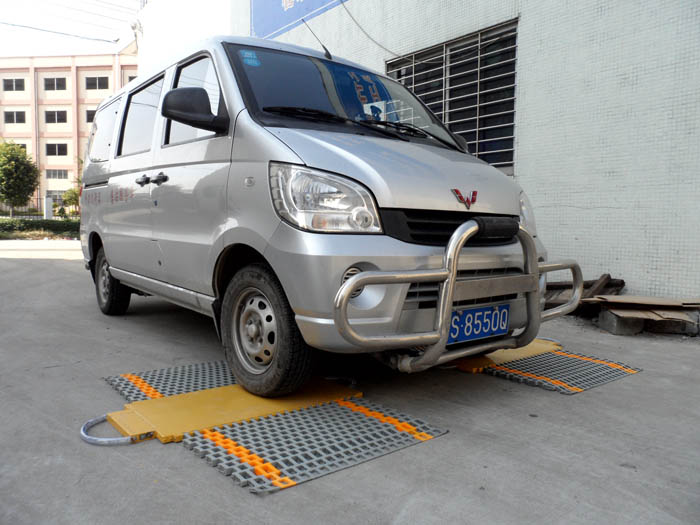

150-Ton Portable Truck Axle Load Scale
Main parameters:
- Dynamic comprehensive error(%F.S): 3 (5~10km/h).
- Static comprehensive error(%F.S): 0.3.
- Product weight： ① weighing pad;:27Kg/pcs ②indicator：9Kg/pcs.
- Product size： ①weighing pad’s size: 870×470×25mm ②indicator’s size：410×305×190mm.
- Defend grade： ① weighing pad: IP66 ②indicator: IP65.
- Deposit： ①Temp. range： -30～+80℃ ② Relative Humidity：＜90%RH .
- Vehicle axle weight is measured axle by axle,and the max number is unlimited.
- Ultra high frequency ensures better anti-electromagnet ability.
- Floating technology is adopted to remove zero drift.
- Digitization menu，easy operation.
- Micro printer is embedded in the wireless instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight, truck weight, overload and executive organization.
- RS232 port is used to communicate with PC.
- AC/DC, real time battery capacity indicating; The battery can be used for 40 hours on end. Automatic shut off.
